- Phase contrast, polarization and dark field can be supportable.
- Double layers mechanical stage, size 156*138mm, moving range 76*54mm.
- Infinity optical system.

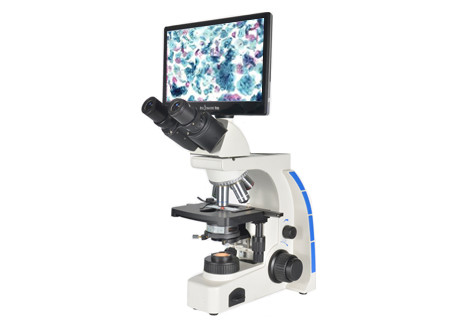

- 11.6" LCD screen built-in 16M pixel camera.
| Item | Description / Value | M12126A | M12126B |
| Body: | Body (Choose the power cord please) | ● | ● |
| View head: | Binocular, Interpupillary distance 52-75mm | ● | |
| Binocular, Interpillary distance 48- 75mm | ○ | |
| Trinocular, Interpuillary distance 52-75mm(100:0) | | ○ |
| Trinocular. Interpillary distance 52-75mm(20:80) | | ● |
| Trinocular, Interpupillary distance 48-75mm(20:80) | | ○ |
| Trinocular, Interpupillary distance 52-75mm(50:50) | | ○ |
| Eyepiece: | High type-point plan eyepiece WF10X/20mm | ●● | ●● |
| High eye point plan eyepiece WF10X/22mm | ○○ | ○○ |
| Plan eyepiece WF16X/13mm | ○○ | ○○ |
| High eye point plan eyepiece WF10X/20mm (pointer) | ○ | ○ |
| High eye point plan eyepiece WF10X/22mm (pointer) | ○ | ○ |
| Reticule Eyepiece Cross WF10X/20mm | ○ | ○ |
| Objectives: | Infinity Economical Plan Achromatic Objective 4X | ○ | ○ |
| Infinity Economical Plan Achromatic Objective 10X | ○ | ○ |
| Infinity Economical Plan Achromatic Objective 40X (S) | ○ | ○ |
| Infinity Economical Plan Achromatic Objective 100X (S) (Oil) | ○ | ○ |
| Infinity Plan Achromatic Objective 2X | ○ | ○ |
| Infinity Plan Achromatic Objective 4X | ● | ● |
| Infinity Plan Achromatic Objective 10X | ● | ● |
| Infinity Plan Achromatic Objective 20X | ○ | ○ |
| Infinity Plan Achromatic Objective 40X(S) | ● | ● |
| Infinity Plan Achromatic Objective 60X(S) | ○ | ○ |
| Infinity Plan Achromatic Objective 100X (S) (Oil) | ● | ● |
| Stage: | Mechanical Stage, Right handed 156X138mm, movement range 76* 54mm | ● | ● |
| Mechanical Stage, Right handed 185X177mm, movement range 75*50mm | ○ | ○ |
| Nosepiece: | Quadruple Nosepiece, inward facing | ● | ● |
| Quintuple Nosepiece, inward facing | ○ | ○ |
| Condenser: | Abbe condenser NA1.25 | ● | ● |
| Dark Field Condenser (dry) | ○ | ○ |
| Dark Field Condenser (oil) | ○ | ○ |
| Illumination: | 6V 20W Halogen Lamps | ● | ● |
| 6V 30W Halogen Lamps | ○ | ○ |
| 3W LED Electric Device (with Rechargeable Batteries) | ○ | ○ |
| 3W LED Electric Device | ○ | ○ |
| Bracket: | 05X C-Mount | | ○ |
| 1X C-Mount | | ● |
| 0.25X C-Mount | | ○ |
| C-Mount | | ○ |
| Filter | Blue Filter (φ38) (LED Lamp without Filter) | ● | ● |
| Focusing: | Coaxial coarse and find adjustment, fine division 1μm | ● | ● |
| Camera: | 11.6" LCD screen built-in 16M pixel camera | | ○ |
